Cost-Effective 2-6mm Mechanical Welded Mesh Machine Supplied to Russia for High-Volume Construction Mesh Sheet Production
Client Background & Construction Mesh Expansion in Russia
Driven by ongoing infrastructure developments and residential building construction across Russia, the market demand for concrete reinforcing welded mesh sheets (BRC mesh) has grown exponentially. Standard 100mm × 100mm mesh opening welded wire sheets made from 2mm to 6mm steel wire are indispensable for slab reinforcement, wall brick mesh, foundation pouring, and precast concrete components.
A prominent regional building material manufacturer in Russia sought to upgrade their wire mesh production capacity to meet rising local construction contracts. The client specified a strict budget limit while demanding a robust, easy-to-maintain welding plant capable of handling 2-6mm wire diameters, a 2.0-meter mesh width, and customized sheet lengths for various building projects.
To deliver maximum cost-efficiency without compromising structural welding quality, JIAKE Machinery proposed a heavy-duty, highly dependable Mechanical 2-6mm Welded Mesh Machine integrated with an automatic mesh shearing system.
Technical Solution: Highly Reliable Mechanical Resistance Welding System
Mechanical welded mesh machines are renowned worldwide for their exceptional structural rigidity, low maintenance overhead, and outstanding return on investment (ROI). Designed specifically for regional mesh manufacturers seeking high daily output within competitive capital expenditure budgets, JIAKE’s mechanical machine utilizes synchronized eccentric shaft pressing and precision electrical control.
| Machine Specification | Russian Client Requirement | JIAKE Mechanical Solution |
|---|---|---|
| Wire Diameter Range | 2.0mm – 6.0mm Steel Wire / Rebar | Heavy-duty upper/lower electrode blocks with adjustable welding pressure springs. |
| Mesh Grid Opening | 100mm × 100mm (Standard Building Mesh) | Fixed or adjustable cross wire spacing (min. 50mm, standard 100mm/150mm/200mm). |
| Welding Mesh Width | 2.0 Meters (2000mm) | 2000mm effective welding width with pre-cut line wire alignment funnel. |
| Welding Technology | Electric Resistance Spot Welding | Synchronous mechanical lever pressing with water-cooled copper welding electrodes. |
| Cross Wire Feeding | Pre-cut and pre-straightened wires | Automatic cross wire hopper feeder with motor-driven single-wire dropping mechanism. |
| Mesh Cutting System | Flexible sheet cutting (Any length) | Automated mechanical/guillotine shearing system synchronized with mesh pulling. |
Key Engineering Advantages of JIAKE Mechanical Welded Mesh Machine

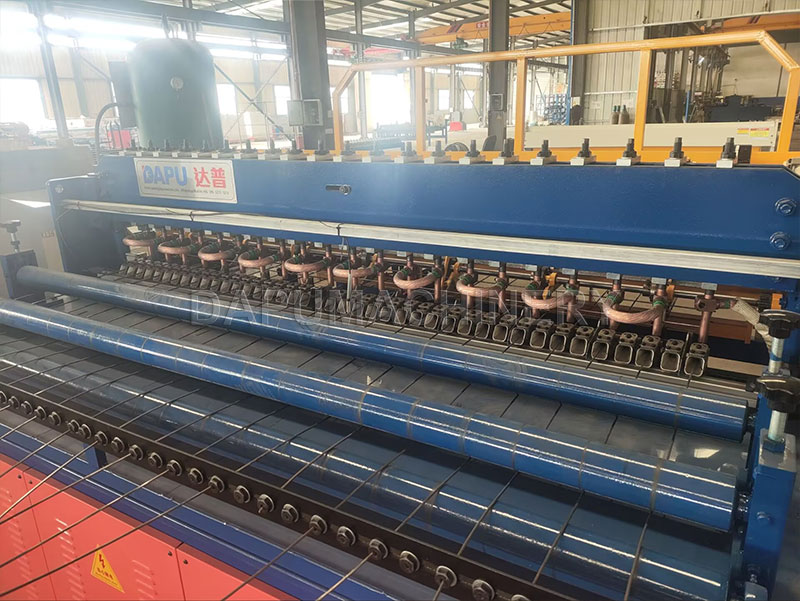

1. Solid Resistance Welding & Water-Cooled Electrodes
The machine employs advanced resistance welding technology. Upper and lower electrodes pressed mechanically by eccentric cams deliver instantaneous high-current electrical impulses to create deep, solid molten weld nuggets at every wire intersection. The welding electrodes are forged from high-conductivity chrome-zirconium copper and feature internal circulating water channels to prevent thermal wear during continuous multi-shift production.

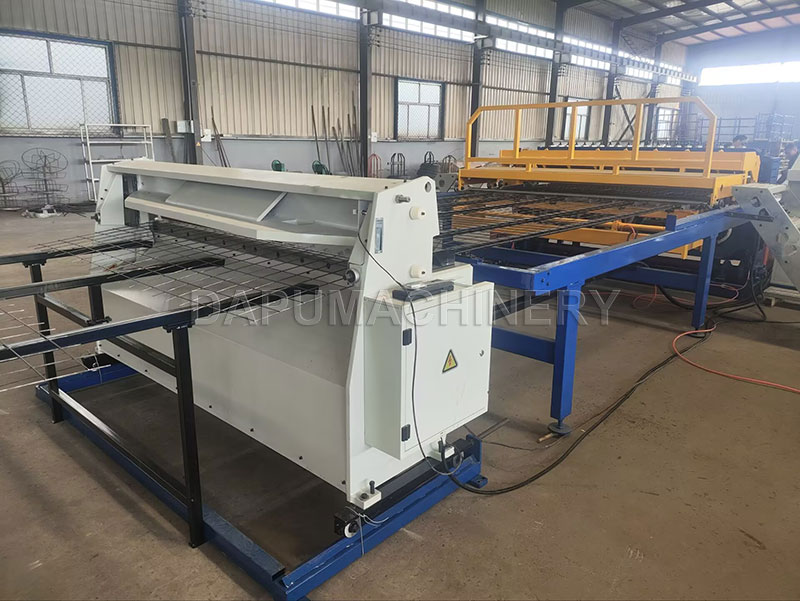

2. Automated Mesh Shearing & Any-Length Sheet Cutting
To eliminate manual labor and satisfy diverse construction site dimensions, JIAKE integrated an automated mesh shearing unit. Equipped with heavy-duty alloy steel blades, the shear cuts the continuous 2m-wide welded mesh automatically once the programmed length (e.g., 2m, 3m, 6m) is reached. The cut mesh sheets are smoothly discharged onto an automatic stacking table.
3. Maximum ROI & Easy Maintenance for Local Technicians
Unlike complex pneumatic or hydraulic systems that require specialized fluid maintenance, JIAKE’s mechanical drive system relies on robust motor reducers, mechanical levers, and durable chain transmissions. This mechanical design reduces routine maintenance complexity, lowers electrical consumption, and ensures stable operation even under harsh factory ambient temperatures in Russia.
Factory Testing & Immediate Purchase Order

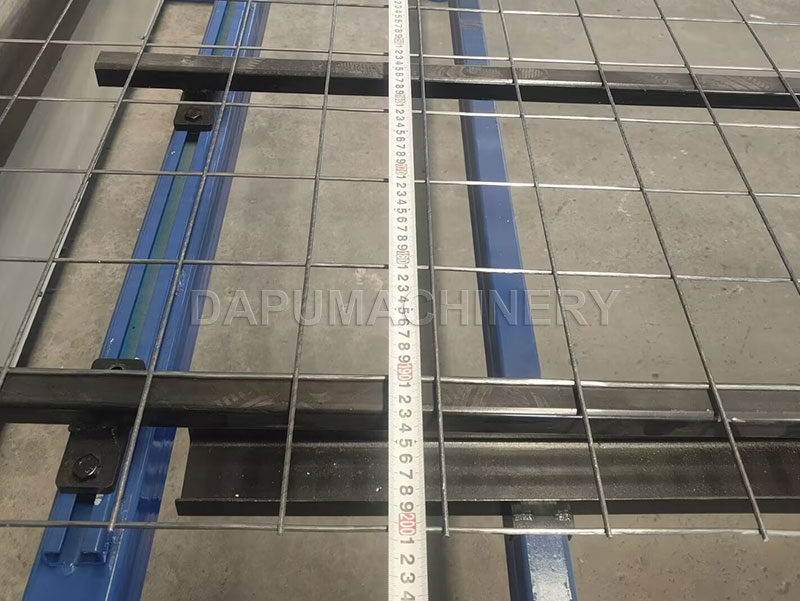

During the factory acceptance trial at JIAKE’s manufacturing workshop in Anping, engineers fed pre-cut 2-6mm steel wires through the hopper and alignment rack. The mechanical mesh machine ran smoothly at high speed, continuously welding 100×100mm grid mesh sheets and automatically shearing them into precise 2-meter lengths with firm weld points and flat surface planarity.
Impressed by the machine’s robust mechanical frame, excellent welding firmness, flexible sheet shearing, and highly competitive pricing within their budget, the Russian client signed the commercial purchase contract on the spot for immediate delivery.
↓
[Automatic Cross Wire Hopper Feeder (Pre-cut 2-6mm Wires)]
↓
[Mechanical Eccentric Shaft Pressing & Resistance Welding Unit]
↓
[Motor-Driven Mechanical Mesh Pulling Mechanism (100mm Grid)]
↓
[Automated Synchronized Mesh Shearing System (Any Length Cut)]
↓
[Automatic Finished Mesh Stacking & Drop Rack]
Client Feedback & Commissioning in Russia
The 2-6mm mechanical welded mesh machine was wrapped in anti-corrosion protective film, packed in heavy wooden crates, and transported via rail container to Russia. JIAKE provided complete electrical schematics, foundation installation guides, and remote video commissioning support.
“Finding a heavy-duty 2-6mm welded mesh machine that fit our exact budget was a challenge until we worked with JIAKE. The mechanical machine is simple to operate, the 100x100mm mesh sheets have extremely strong weld spots, and the automatic shear cuts any length we need for local builders. JIAKE delivered the best cost-to-performance ratio.”
Expand Your Construction Mesh Production with JIAKE Machinery
As a professional manufacturer of wire mesh machinery in China, JIAKE Machinery offers tailored mesh welding equipment to suit various investment budgets and technical demands. Discover our complete machine range including welded mesh machines, wire drawing machines, and expanded metal machines.
Looking for Cost-Effective Mesh Welding Machinery?
Contact JIAKE Machinery engineers today for customized machine recommendations, output calculations, and direct factory pricing.
