>>Wire Mesh Welding Machine

High Capacity Steel Reinforcement Mesh Sheets Welding Line

Used JIAKE mesh welding factory 4-12/3-8/3-6/2-4mm pneumatic wire mesh welding machines production line to Increase roll/panel mesh productivity and quality. The automatic wire mesh welding machines adopt European design techniques, Higher welding speed for more production; and higher welding degree for good quality mesh. No waste mesh, no weak welding.

① JIAKE wire mesh welding machine adopts European welding technology and international brand electronic components, many welding patent technologies, professionally designed to meet customer production requirements.
② International brand electronic components (SMC, Siemens, Schneider, Panasonic, etc.) ensure high quality and highly stable working.
③ The transformer, and copper electrode of the welding unit adopt a water-cooling cooling mode to ensure that the machine operates in good condition and has a long working time.

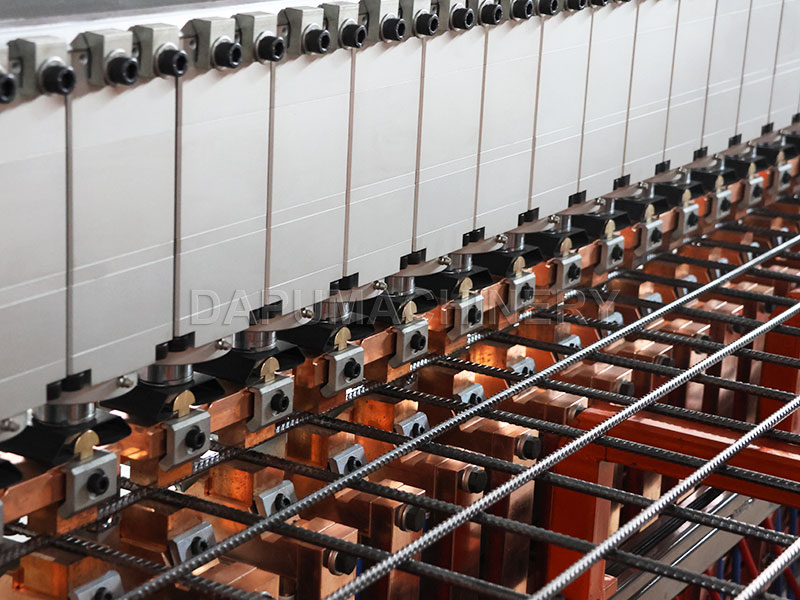

④ SMC air cylinders control welding, with the same pressure, and the welding is firm, mesh is flat.
⑤ The electrodes are chromium zirconium copper, which improves the electrode efficiency; the welding quality is high and the sparks are tiny;
⑥ This machine can weld different wire materials (galvanized wire, black wire, ribbed wire, etc) and different types (pre-cut wires, wire coils), with high flexibility.

Heavy-duty wire mesh welding machine is fully automatic for the production of construction mesh in sheets.

European design wire mesh welding machine with wire diameter range 4-12mm, 3-8mm, 3-6mm for option, used for the production of reinforcing mesh panel, anti-climb fence, 3D fence panel, welded gabion box, cable tray mesh, etc.

Specification

Model DP-GW-2500B DP-FM-2500A+ DP-FP-2500A+
Vertical wire diameter 4-12mm 3-8mm 3-6mm
Horizontal wire diameter 4-12mm 3-8mm 3-6mm
Max. mesh width 2500mm/3000mm 2500mm/3000mm 2500mm/3200mm
Vertical wire space 100-300mm 100-300mm 50-300mm/75-300mm
Horizontal wire space 50-300mm 12.5-300mm 12.5-300mm
Max. mesh length 6m/12m 6m/12m 6m
Max. welding speed 80-100 strokes/min 80-100 strokes/min 120 strokes/min

Video

Finished Product

Concrete-Reinforcing-Steel-Mesh

JIAKE pneumatic 3-8mm automatic wire mesh welding machines are designed for the flexible and economical production of reinforced concrete mesh.

High-Speed Reinforcement Mesh production line in Rolls or panels with spool feeding unit, loop unit, and mesh stacking unit, European design, especially used to make reinforcing mesh panels and mesh roll. Different types of wire feeding systems for options.

Specification

Model DP-FP-2500BN+ DP-FP-3000BN+ DP-FP-2500BM
Vertical wire diameter 3-8mm 3-8mm 4-10mm
Horizontal wire diameter 3-8mm 3-8mm 4-10mm
Crosswire dia(Pre-cut) 3-8mm 3-8mm 3-8mm
Max. mesh width 2500mm 3000mm 2500mm
Vertical wire space 100-300mm 100-300mm 100-300mm
Horizontal wire space 50-300mm 50-300mm 50-300mm
Max. mesh panel length 6m+ 6m+ 6m+
Max. mesh roll length Max.100m (3-6mm) Max.100m (3-6mm) Max.100m (4-6mm)
Max. welding speed 80-100 times/min 80-100 times/min 80-100 times/min

Video

Finished Product

welded-roll-mesh steel-rebar-mesh 3d-fence-panel anti-climb-fence

JIAKE 3-6mm wire mesh welding machine is designed to be used wherever highly flexible and highly productive construction mesh manufacture is required.

3-6mm wire mesh welding machine with an automatic wire feeding system, can make both panel mesh and roll mesh. It is popularly used to make road mesh, reinforcing mesh, construction mesh, fence panels, etc.

Specification

Model DP-FP-2500BN DP-FP-3000BN
Max. mesh width 2500mm 3000mm
Vertical wire diameter 3-6mm 3-6mm
Horizontal wire diameter 3-6mm 3-6mm
Vertical wire space 50-300mm 100-300mm 150-300mm 100-300mm 150-300mm
Horizontal wire space 50-300mm 50-300mm
Max. mesh panel length 6m+ 6m+
Max. mesh roll length Max.100m Max.100m
Max.Welding speed 50-75 times/min 50-75 times/min

Video

Finished Product

Roll-mesh welded-wire-fence-panel wire-mesh-cable-tray gabion-box

The High Speed Wire Mesh Welding Machine 2-4mm is our newly developed full production line to make wire mesh 25*25mm, 50*25mm, and 50*50mm size, the mesh size is adjustable and the welding torch is controlled by multi-force air cylinders, which is a new technology of our factory.

Specification

Model DP-AW-1000H+ DP-AW-1200H+ DP-AW-1500H+
Mesh width Max.1000mm Max.1200mm Max.1500mm
Wire diameter 2-3mm/2-4mm/2-5mm
Line wire pitch 25-200mm
Cross wire pitch 25-200mm
Welding speed 80-100 times/min
Welding torch 41pcs 49pcs 61pcs
Welding transformer 150kva*3pcs 150kva*4pcs 150kva*5pcs
Machine size 5.4*2.1*1.8m 5.4*2.1*1.8m 5.4*2.4*1.8m
Weight 3.5T 3.8T 4.2T

Video

Finished Product

chicken-cage

Electric galvanized welded roll mesh machine is our new type of steel wire mesh welding machine. The popular grid cell sizes are 1/2”, 1”, 2”, 12.5mm, 25mm, 50mm, 100mm, 150mm, etc. but also it is equipped with an inverter to control the speed and a new type of motor&reducer, with a good working performance.

Specification

Model DP-DNW-2 DP-DNW-3 DP-DNW-4
Wire diameter 0.65-1.2mm, 0.8-2mm 1.0-2.2mm, 1.2-2.5/2.8mm 1-3mm
Line wire pitch 1/2”, 1”, 2”

(12.5mm, 25mm, 50mm)

1”-6”

(25-150mm)

15mm, 16mm, 17mm, 20mm
Cross wire pitch 1/2”, 1”, 2”

(12.5mm, 25mm, 50mm)

1/2”-6”

(12.5-150mm)

15mm, 16mm, 17mm, 20mm
Mesh width 1.2m, 1.5m, 2m

4ft, 5ft, 6ft,7ft

1.5m, 2m, 2.5m

5ft, 6ft,7ft, 8ft

1.5m, 2m, 2.5m

5ft, 6ft,7ft, 8ft

Main motor 2.5kw, 4kw, 5.5kw 4kw, 5.5kw, 7.5kw 4kw, 5.5kw, 7.5kw
Welding transformer 60-80kva*4/5/7pcs 60-80kva*5/7/8pcs 60-80kva*5/7/8pcs
Welding speed Max.120-180times/min Max.60-100 times/min 60-80times/min
Weight 2.5T/3T/3/5T 3T/3.5T/4T 3T/3.5T/4T

Video

Finished Product

welded-mesh-roll
