>>WELDED GABION BOX MACHINE

Jiake welding machinery is the NO.1 manufacturers for Welded Gabion Box Machine in China! We have 20+ years experience, of course,our customers are located all over the world, our range includes High speed gabion box welding machinefully automatic welded gabion box machine and pneumatic type welded gabion box making machine. In conclusion, We are able to meet the special requirements of our customers. So more machine details, welcome to visit our website!

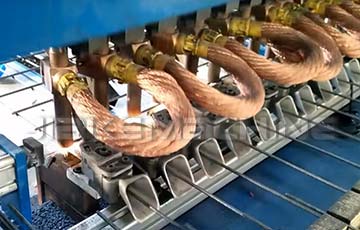

Gabion box welding machine is used to make welded mesh panels, then connect by springs to form welded gabion box. The gabion boxes are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.

Youtube Video

Specification

Model: DP-FP-2500A and DP-FP-1200A.

Wire diameter: 3-6mm

Mesh hole size: 50-300mm (when wire diameter 3-5mm), 100-300mm (when wire diameter 5-6mm)

Mesh width: Max.1200mm, max.2000mm, max.2500mm.

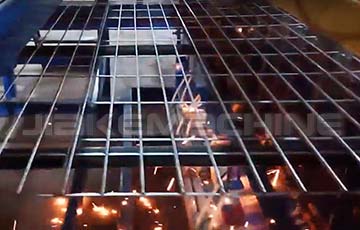

Automatic Welded Gabion Box Machine is automatic type to make welded mesh panels to form the gabion box by springs. The longitude wires are fed from wire coils automatically.

Youtube Video

Specification

Model: DP-FP-2500BN and DP-FP-1200BN.

Wire diameter: 3-6mm

Mesh hole size: 50-300mm (when wire diameter 3-4.5mm), 100-300mm (when wire diameter 4.5-6mm)

Mesh width: Max.1200mm, max.2000mm, max.2500mm.

Pneumatic welded gabion box machine is pneumatic type to make welded mesh panels to form the gabion box by springs. It can make two mesh panels at same time, increasing the production capacity.

Youtube Video

Specification

Model: DP-FP-3200A+ and DP-FP-2500A+

Wire diameter: 3-6mm

Mesh hole size: 67-300mm (when wire diameter 3-5mm), 100-300mm (when wire diameter 5-6mm)

Mesh width: Max.1200mm, max.2000mm, max.2500mm, max.3200mm.
