>>FENCE MESH MACHINE

Specializing in the production of various industrial protective nets and agricultural protection nets

JIAKE welding machinery is a professional manufacturer for all kinds of fence mesh machines in China! Specializing in the production of various industrial protective nets and agricultural protection nets, Those machine production fences mainly used Protection, such as road protection, animal protection, Military protection, etc. Besides we have 20+ years of experience and some professional engineers. In conclusion, welcome to visit our factory!

Clearvu fence welding machine, Model: DP-FP-3200A+. To make an anti-climb fence, we suggest a pneumatic type machine. The pressure of each welding point can be totally the same, so the finished mesh is flattened. After finishing welding, the mesh will be bent by a fence bending machine. The welding speed of the clear view fence welding machine can be up to max.120 times/min.

Youtube Video

Specification

Model DP-FP-3200A+
Wire diameter 3-6mm
Line wire space 76.2-300mm
Cross wire pitch Min.12.7mm
Mesh width Max.3200mm
Mesh length Max.3000mm or bigger
Welding electrodes 44pcs
Welding transformer 150kva*11pcs
Welding speed Max.60-80 times/min
Line wire feeding Pre-straightened&pre-cut
Cross wire feeding Pre-straightened&pre-cut
Power supply Min.250kva
Weight 5.8T
Machine size 5.4*3.7*2.3m
anti-climb-fence

3D fence panel welding machine, Model: DP-FP-2500A. This machine is the common model to make a 3D fence panel, consisting of a wire straightening and cutting machine, fence mesh welding machine, and fence mesh bending machine. If the three types of machines are working at the same time, 8 hours can produce about 400pcs fence panels.

Youtube Video

Specification

Wire diameter 2.5-6mm
Line wire pitch 50-300mm
Cross wire pitch Min.25mm
Welding width Max.2.5m
Mesh length Max.3.2m
Welding torch 48pcs
Welding speed Max.80 times/min
Welding transformer 150kva*6pcs
Machine weight 4T
Machine size 4.9*3.4*1.6m
Container required 1*40HC
3D fence garden panel

Automatic bending 3D fence panel machine, Model: DP-FP-3000AN. This is our new model to make a 3D fence panel. The bending part is automatic, no need for workers to hold the mesh. The mesh size is a maximum of 3000*3000mm and adjustable. For this machine, 8 hours can produce about 320pcs fence panels.

Youtube Video

Specification

Model DP-FP-2500AN DP-FP-3000AN
Wire diameter 3.5-6mm 3.5-6mm
Line wire pitch 50-300mm 50-300mm
Cross wire pitch Min.25mm Min.25mm
Bending width Max.2.5m Max.2.5m
Mesh length Max.3m Max.3m
Welding torch 51pcs 61pcs
Welding speed 60 times/min 60 times/min
Welding transformer 150kva*6pcs 150kva*8pcs
Machine weight 8.8T 10T
Machine size 15*3.2*1.7m 15*3.7*1.7m
Container required 1*40HC+1*20GP

Double wire fence welding machine

Double wire fence welding machine, Model: DP-FP-2500D. This machine is especially to make double wire fences 8+6+8, 6+5+6. The wires should be pre-cut, then put into the mesh mold manually. A servo motor will control the mesh moving for welding. This model is a simple one, very easy to operate.

Youtube Video

Concertina razor security fence welding machine(Model: DP-FP-3000R) is special to weld diamond shape razor wire fences, and the popular sizes are 150*75mm and 300*150mm and adjustable. The mesh width is a maximum of 3000mm. Razor security fence welding machine is popularly used in the security field.

Youtube Video

Specification

Model DP-FP-3000R
Razor wire diameter 2.5mm
Mesh size 150*75mm (adjustable)
Mesh width Max.3000mm
Mesh length No limit
Welding torch 42pcs
Welding speed 60 times/min
Welding transformer 100kva*5pcs
Machine weight 4.2T
Machine size 6.4*3.5*1.6m
Container required 1*20*GP or 1*40GP
Razor-wire-fence

Hinge Joint Fence Machine, Model: CY-C. This machine is also called filed fence machine, a grassland fence machine. The line wire tensile strength can be 300N/MM2—-1300N/MM, very suitable to prevent the animals from breaking. And the line wires can be a straight type or V type. The cross wire tensile strength can be 300—500N/MM2.

Youtube Video

Specification

Model CY-A CY-B CY-C CY-D
Max.mesh width 1427mm 1880mm 2000mm 2400mm
Motor 4kw 5.5kw 5.5kw 7.5kw
Max. line wire number 11 13 18 23
Inner wire diameter 1.8mm-2.5mm
Edge wire diameter 2mm-3.5mm
Weaving speed 45rows/min
Min. line wire space 75mm/50mm
Cross wire space 50-500mm (adjustable)
Machine size 2.8×3.2×2.4m 3.3×3.2×2.4m 3.4×3.2×2.4m 3.9×3.4×2.4m
Machine weight 3T 3.5T 4T 4.5T
Note: Finally we can design the machine according to your request.

Chain Link Fence Weaving Machine: Model: DP25-80. Our chain link fence machine is the advanced model in China. It has advantages of high weaving speed, less machine maintenance, good working performance, high stability, less noise, etc. And chain link machine adopts famous brand electric motors, so the quality can be guaranteed.

Youtube Video

Specification

Model DP25-80
Production capacity 120 to 180m^2/hour
Wire diameter 2-4mm
Mesh opening size 25-80mm (Different mesh opening size needs different molds.)
Mesh width Max.4m
Mesh length Max.30m, adjustable.
Raw material Galvanized wire, PVC Coated wire
Servo Motor 5.5 KW
Motor for side dealing 1.5 KW
Motor for parting tool 1.5 KW
Motor for winding 0.75 KW
Weight 3900kg
Dimension 6700*1430*1800mm; 5100*1700*1250mm
Chain-link-fence

Barbed wire fence making machine: Model: CS-A, CS-B, CS-C. The three models for a different types of barbed wires. and, it is a very hot sale and we have machines in stock. Above all, it is easy to operate and has fewer problems. The wire diameter can be smaller in this machine to save cost.

Youtube Video

Specification

Model CS-A CS-B CS-C
Main wire diameter 1.5-3.0mm 2.0-3.0mm 1.6-2.8mm
Barbed wire diameter 1.6-2.8mm 1.6-2.8mm 1.6-2.2mm
Barbed space 3”, 4”, 5” 4”, 5” 4”, 5”
Twisted number 3-5 7
Motor 2.2kw 2.2kw 2.2kw
Raw material Galvanized wire or PVC coated wire. Galvanized wire Galvanized wire
Production 70kg/h, 25m/min 40kg/h, 18m/min 50kg/h,18m/min
Total weight 1050KG 1000KG 1050KG
Packing size 5.9CBM 5.8CBM 5.9CBM

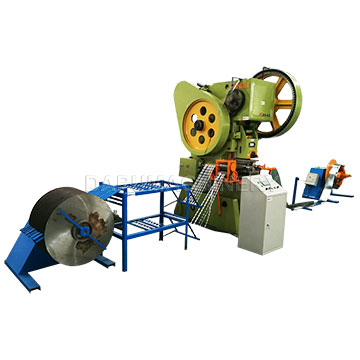

Concertina razor wire fence making machine: Model: DP-RB-25. This machine is used to make different shapes of razor tape from steel coil, Then, cover a steel wire into the razor tape, At last, razor wire is formed. often widely used for protection and has high security. Above all, You can choose the razor shape you want.

Youtube Video

Specification

Style Barb length Barb width Barb space Steel tape shape
BTO-12-1 12±1mm 13±1mm 26±1mm BTO-12-1
BTO-12-2 12±1mm 15±1mm 26±1mm BTO-12-2
BTO-18 18±1mm 15±1mm 33±1mm BTO-18
BTO-22 22±1mm 15±1mm 34±1mm BTO-22
BTO-28 28±1mm 15±1mm 48±1mm BTO-28
BTO-30 30±1mm 18±1mm 49±1mm BTO-30
BTO-60 60±1mm 32±1mm 96±1mm BTO-60
BTO-65 65±1mm 21±1mm 100±1mm BTO-65

Expanded metal mesh machine, Model: DP25-100. This machine can make different shapes of mesh holes. The expanded metal fence is beautiful and strong, popularly used in construction, fence protection, and other fields. You can choose 6.3T, 16T, 25T, 30T, 40T, 63T, 100T, 160T, 260T for different steel thicknesses.

Youtube Video

Specification

Model DP25-16 DP25-25 DP25-40 DP25-63 DP25-100 DP25-160
Material
Thickness(mm)
0.1-1 0.1-1.5 0.1-2.5 0.5-3 0.5-5 0.5-8
Material
Max.width(mm)
1000 1250 1500 2000 2000/2500 2000/2500/3200
Speed
(times/min)
220 200 110 75 60 50
Feed distance(mm) 0-2.2 0-3 0-6 0-6 0-10 0-10
Mesh opening size LWD(mm) ≤25 ≤30 ≤80 ≤150 ≤180 ≤200
Motor(kw) 5.5 5.5 11 11 18.5/22 30
Weight(T) 2.2 3 7 11 13/15 18/20/26
Size(mm) 1.1*1.7*2 1.5*2.1*2 1.8*3.2*2.1 3.4*3.4*2.35 3.4*3.6*2.65 3.5*3.7*2.65
