Custom JIAKE Pneumatic 3-6mm Roll Mesh Welding Machine for Canadian Road Construction: A Case Study
Project Background & Client Requirements
In 2026, a major infrastructure material supplier based in Ontario, Canada, partnered with JIAKE Machinery to upgrade their production line for concrete road reinforcement mesh rolls. Road construction in North America demands strict compliance with ASTM standards, requiring precise weld strength, uniform mesh openings, and smooth surface finish to prevent crack propagation under severe freezing-thawing cycles.

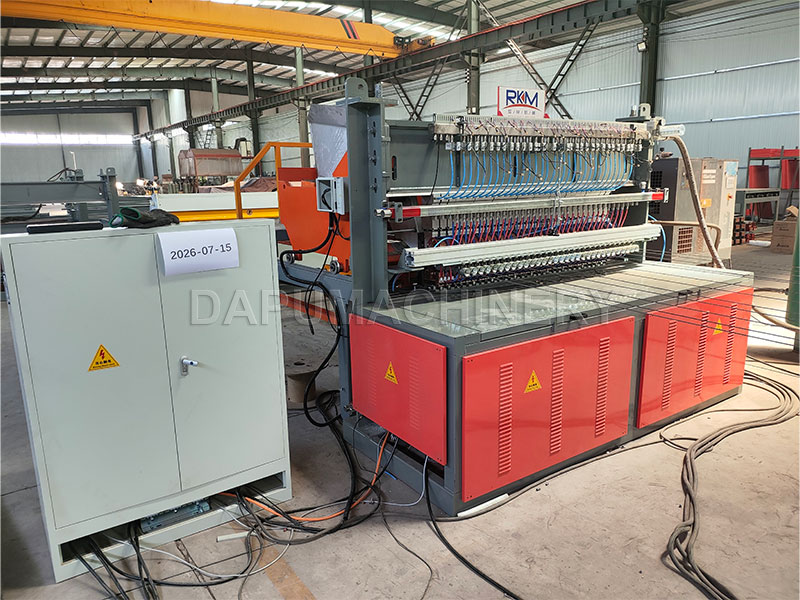

To satisfy the Canadian client’s high-capacity targets, JIAKE engineered a custom Pneumatic 3-6mm Roll Mesh Welding Machine. Powered by advanced SMC pneumatic cylinders and a Panasonic PLC automation suite, the machine is designed to continuous-weld 3.0mm to 6.0mm line and cross wires into high-density mesh rolls.
Key Technical Specifications of JIAKE Pneumatic Roll Mesh Machine
Compared to traditional mechanical mesh welders, JIAKE’s pneumatic series offers significantly higher welding speeds, lower operating noise, and independent electrode pressure adjustment.
| Parameter | Specification |
|---|---|
| Machine Model | JIAKE-PNC-2500 (Pneumatic Type) |
| Wire Diameter Range | 3.0 mm – 6.0 mm (Low Carbon / Galvanized Wire) |
| Welding Width | 2500 mm (Customizable up to 3000 mm) |
| Mesh Opening Size | 50×50 mm – 200×200 mm (Steplessly Adjustable) |
| Welding Speed | Up to 80 – 100 times/min |
| Cross Wire Feeding | Automated Multi-Hopper System with Step-Motor Control |
| Line Wire Feeding | Direct from Wire Coils via Pay-Off Stands |
| Mesh Output Form | Automatic Hydraulic Roll Winding + Panel Cutting Unit |
Custom Engineering Solutions for Canadian Infrastructure Standards
1. Precision Pneumatic Welding Systems for Uniform Weld Strength
Challenge: Road reinforcement mesh (used in highway paving, airport runways, and bridge decks) requires consistent tensile strength across every single weld point.

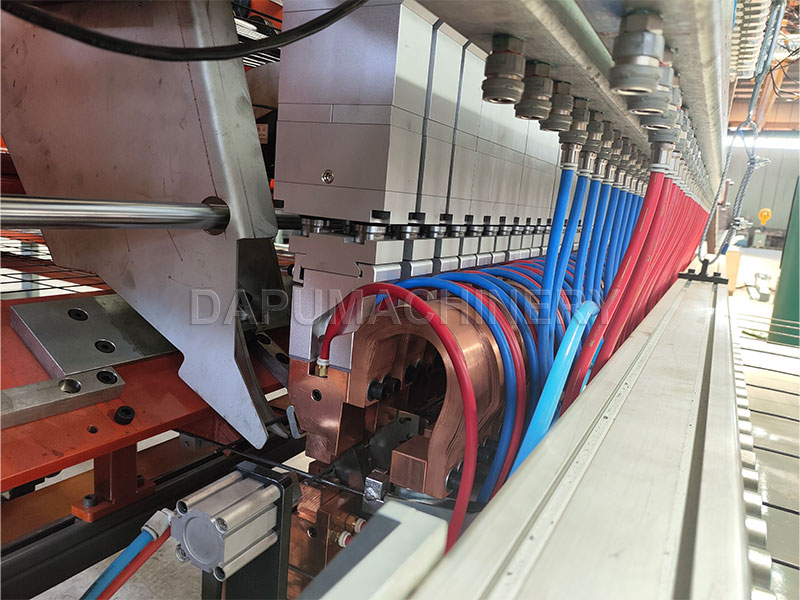

Solution: JIAKE integrated high-performance pneumatic cylinders for each welding electrode. Unlike mechanical springs, pneumatic pressure can be individually tuned on the control panel, ensuring equal pressure distribution regardless of wire tolerance. This eliminates cold-welding or wire burning issues.
2. Heavy-Duty Automated Hydraulic Roll Winding
Challenge: Handling thick 6.0mm steel wire in roll form is extremely difficult due to the high spring-back force of heavy-gauge wire.
Solution: JIAKE equipped the machine with a heavy-duty hydraulic mesh rolling machine. The automated rolling mechanism tightly coils 30-meter to 50-meter long mesh sheets and features automatic wire discharge, significantly reducing manual labor for Canadian operators.
3. Multi-Language Touchscreen PLC Interface
Challenge: The client required a user-friendly interface to enable quick switching between different mesh sizes (e.g., 100x100mm vs 150x150mm) without manual mechanical calibration.
Solution: JIAKE installed a Panasonic PLC equipped with an English-French bilingual touch screen. Mesh pitch parameters can be adjusted digitally within seconds.
Factory Testing (FAT) & Client Feedback
Before dispatching to Canada, JIAKE engineers conducted rigorous 48-hour continuous trial runs using 4.5mm and 6.0mm low carbon steel wires.
↓
[Pneumatic Spot Welding Press (JIAKE PNC-2500)]
↓
[Servo Motor Pulling Mesh System]
↓
[Automatic Hydraulic Mesh Roll Winder]
↓
[Compact Finished Road Mesh Rolls]
Test Highlights:
- Production Speed: Achieved a steady speed of 90 strokes per minute for 100x100mm 4.0mm road mesh rolls.
- Weld Shear Force: Exceeded ASTM A1064 standards by over 25% in lab pull-tests.
- Energy Efficiency: Integrated water-cooling transformers effectively reduced power consumption during full-capacity operation.
“JIAKE’s pneumatic roll mesh machine has doubled our factory output for road construction mesh. The pneumatic welding system provides exceptional joint consistency, and the automated roll winder handles 6mm wire effortlessly. Their remote installation guidance was top-class.”
Upgrade Your Wire Mesh Production with JIAKE Machinery
As a leading Chinese manufacturer of wire mesh machinery, JIAKE provides customized industrial solutions tailored to international standards. Beyond roll mesh equipment, JIAKE offers all kinds of wire mesh welding machines, roll mesh welding machines, wire drawing machines, expanded metal mesh making machines and complete wire processing auxiliary equipment.
Planning a Road Construction Mesh Project in Your Region?
Contact JIAKE engineers today to receive customized technical designs and factory-direct quotations.
